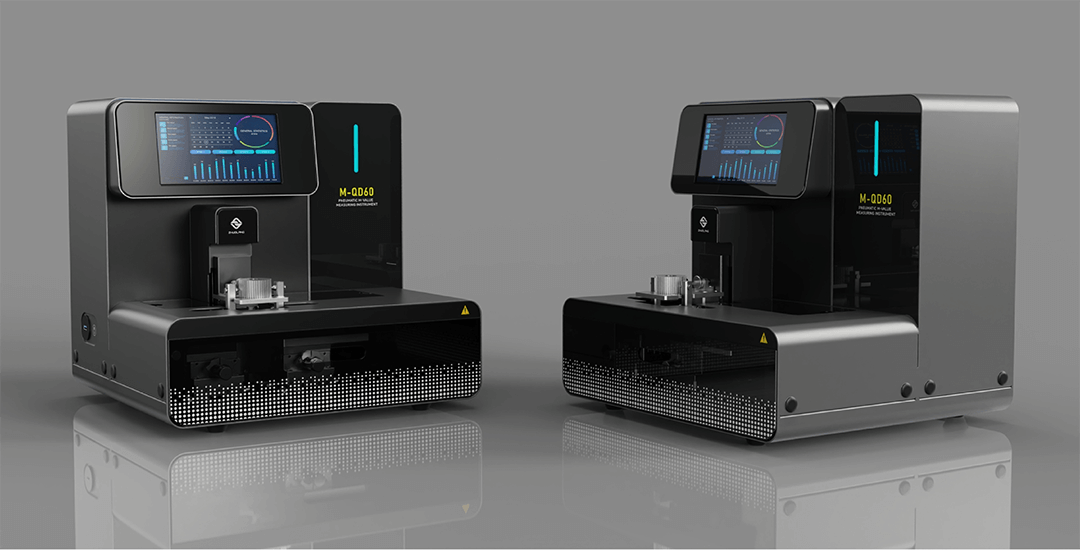

◾ Manual lifting platform function: both internal and external gears can be measured;
◾ Measuring module range: 0-60. Measurement of gears with different modules can be realized by adjusting the fine-tuning platform;
◾ Fewer measuring tools are required for zero calibration, and comparative measurement is also available;
◾ Quick-change function of the detection platform: the measuring platform can be replaced conveniently to adapt to gears of different specifications. A worn platform can be replaced quickly;
◾ Optional code scanner and coding machine, with data upload function realized via PLC or computer system.
| name | content |
| Measurement System Repeatability/Linearity | ±1um |
| Repeat Measurement Accuracy | <1~1.5μm/50 times |
| Measurement Range | 0-60mm (Internal/External Gears) |
| Air Supply Requirement | 0.4～0.6 MPa |
| Probe Diameter | 1 pair of probes provided according to drawings |
| Measuring Ball Diameter | Customizable probe diameter |
| Moving Stroke of Part Lifting Table | 60mm |
Party B recommends a suitable measurement scheme based on the gear parameters provided by Party A.

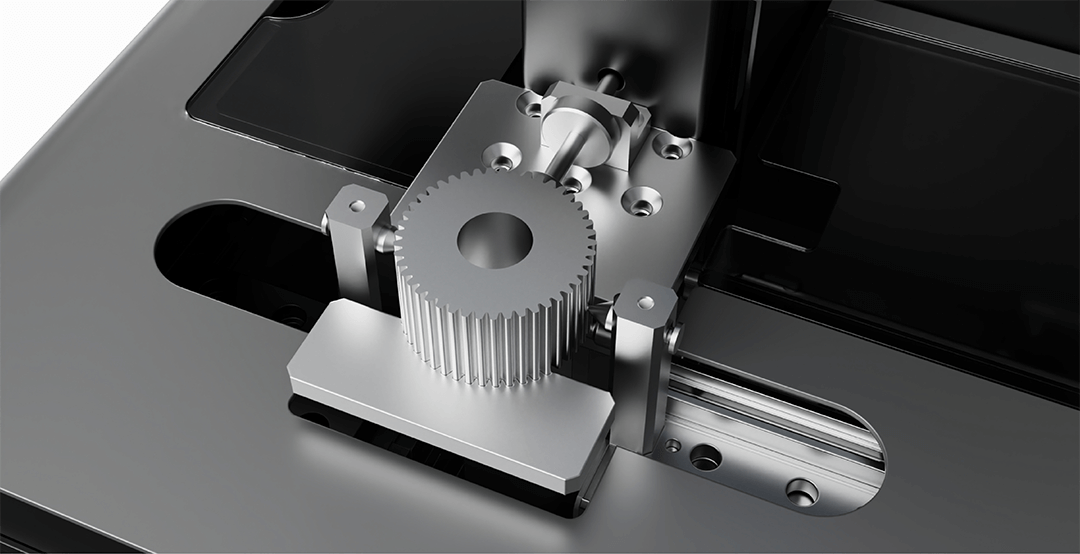

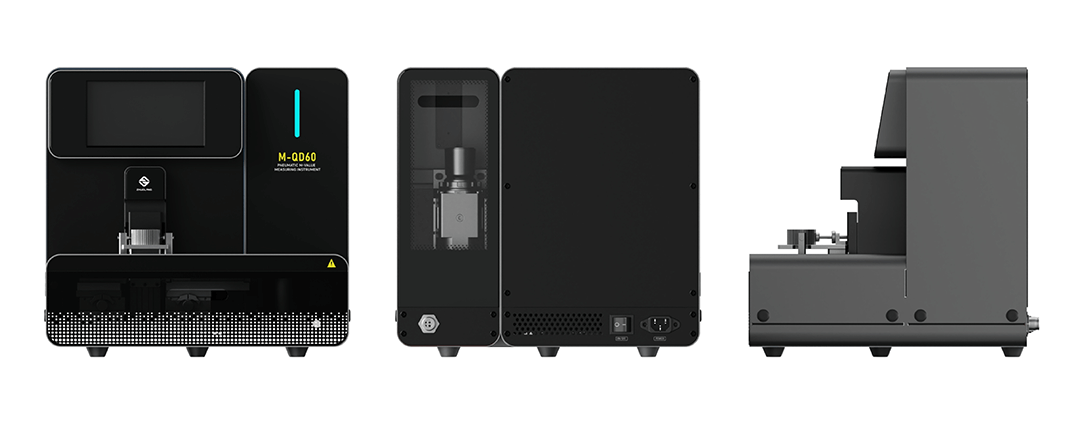

Adopts a structural layout with a front-mounted measuring unit for easy gear installation. The measurement process is controlled pneumatically, which is convenient and practical.
Adopting an oil-resistant and contamination-resistant sensor with 1μm accuracy and 0.1μm resolution, it enables accurate and fast measurement.
Adopting a pressure control system with a filtering function and pressure gauge display, it features a stable force measurement source and visible measurement & pressure regulation.
